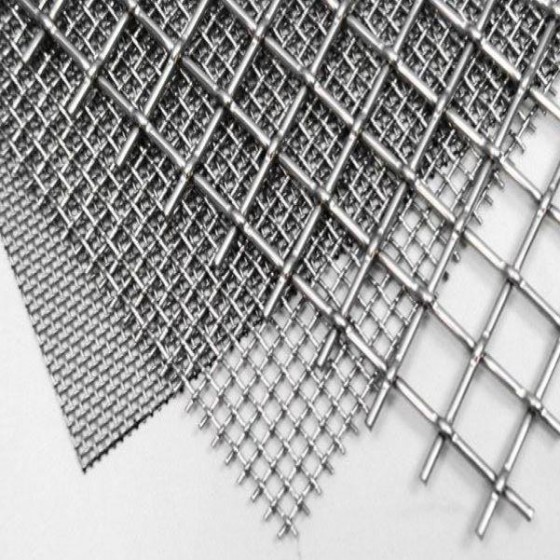

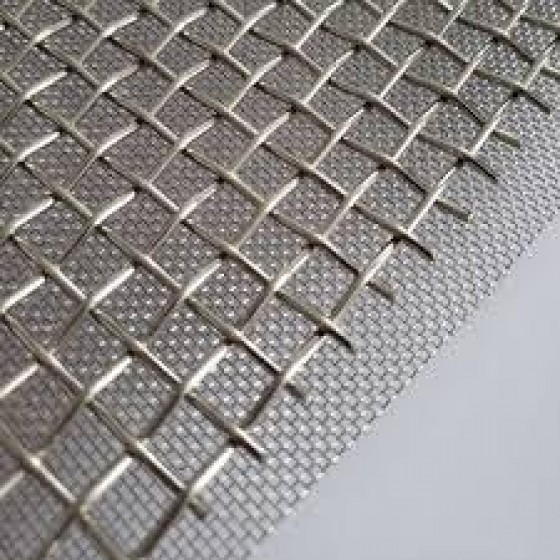

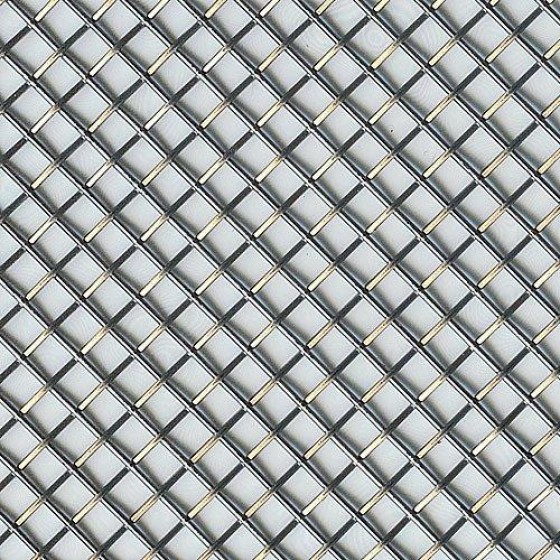

Stainless Steel Wire Mesh (Woven Wire Cloth) is engineered for high-precision filtration, screening, and separation processes. Available in a wide range of weaving patterns and alloy grades, it offers exceptional durability against heat, corrosion, and wear, making it the critical component for demanding industries from aerospace to pharmaceuticals.

Why Choose Our Stainless Steel Mesh?

 • Diverse Weaving Options:
     ◦ Plain/Twilled Weave: Ideal for standard sieving and sizing.
     ◦ Plain/Twilled Dutch Weave: Designed for high-pressure filtration with micron-level precision.
 • Premium Alloy Grades: Beyond standard 304/316, we supply 310S and 314 grades for extreme high-temperature environments (e.g., furnace belts).
 • Extreme Precision: Capabilities ranging from coarse 1 mesh down to ultra-fine 635 mesh (approx. 20 microns) for sophisticated filtration needs.

Key Applications

 • Chemical & Petroleum: Acid/alkali liquid filtration and oil slurry separation.
 • Food & Pharmacy: Hygienic screening compliant with food safety standards.
 • High-Tech Industries: Precision filtration for aerospace hydraulics, electronics, and metallurgy.
 • Environmental: Water treatment and air purification systems.

Specifications

 • Materials:
     ◦ Standard: SUS/AISI 304, 304L, 316, 316L
     ◦ Heat/Special Resistant: 310S, 314 (Available upon request)
 • Weaving Patterns: Plain, Plain Dutch, Twilled, Twilled Dutch.
 • Mesh Count: 1 mesh ~ 635 mesh
 • Wire Diameter: 5mm ~ 0.02mm
 • Dimensions:
     ◦ Width: 2 feet ~ 5 feet
     ◦ Length: 25ft, 50ft, 100ft (Standard Rolls)

Custom orders for specific widths, lengths, and special alloys are welcome.
